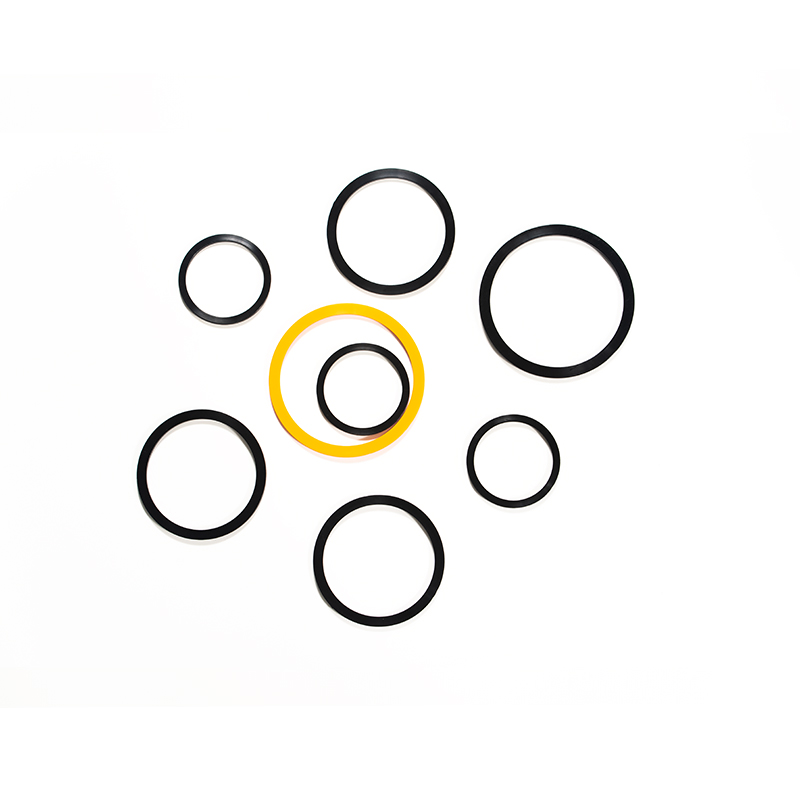

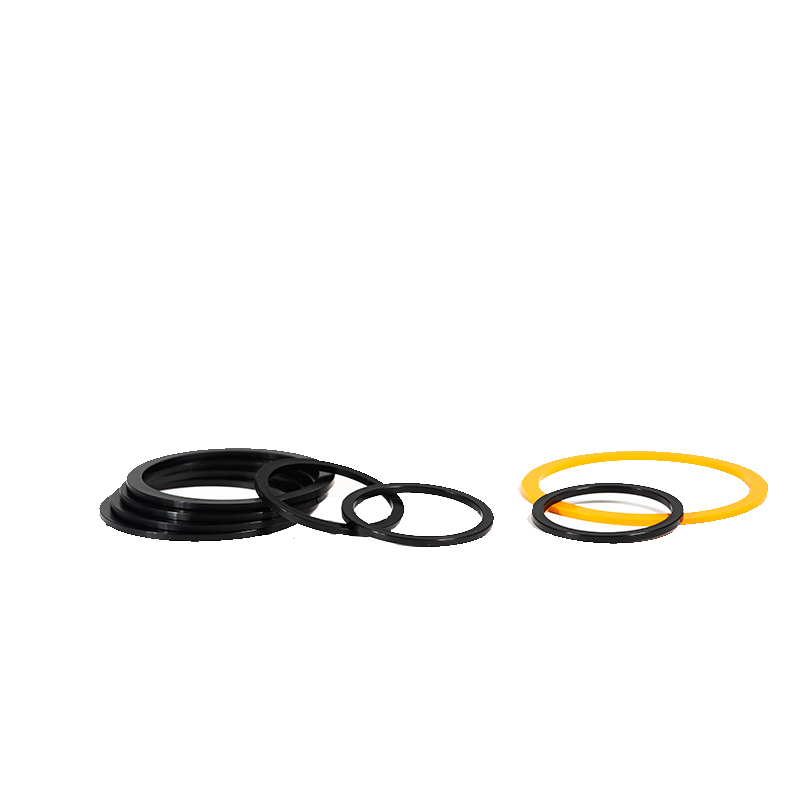

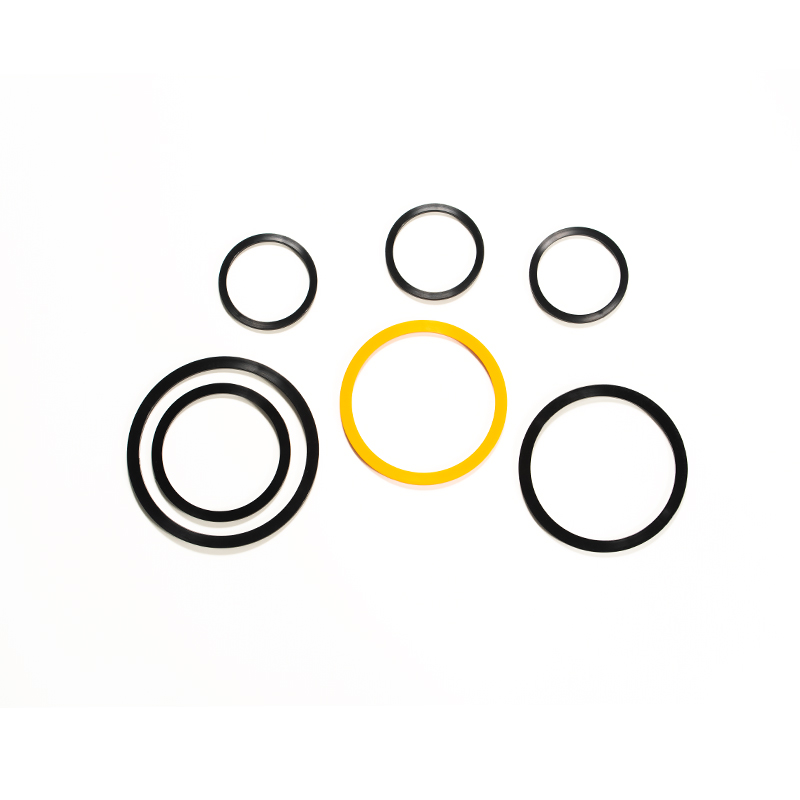

Rod Seal Nylon Backup Ring
Replacement Part Description: Advantages: – Good chemical and wear resistance. – Improves seal extrusion resistance, thereby extending seal service life. … Read more
Min.Order Quantity: 1 Set or 1 Bag
Supply Ability: 1000 Sets per Week
Delivery Time: 5-7 days for samll order
Replacement Part Description:
Advantages:
– Good chemical and wear resistance.
– Improves seal extrusion resistance, thereby extending seal service life.
Important tips:
The seal cannot be used alone and must be used in conjunction with the piston rod seal.
When the system pressure is high, it is recommended to use PA material.
All retaining rings are divided into two types: integral and open.
| ITM | ID | OD | H |
| JSBRT | 25 | 35 | 2 |
| JSBRT | 30 | 40 | 2 |
| JSBRT | 30 | 40 | 3 |
| JSBRT | 30 | 43 | 3 |
| JSBRT | 32 | 42 | 2 |
| JSBRT | 32 | 48 | 3 |
| JSBRT | 35 | 45 | 2 |
| JSBRT | 35 | 45 | 3 |
| JSBRT | 40 | 50 | 2 |
| JSBRT | 40 | 50 | 3 |
| JSBRT | 40 | 55 | 3 |
| JSBRT | 45 | 55 | 2 |
| JSBRT | 45 | 55 | 3 |
| JSBRT | 45 | 60 | 3 |
| JSBRT | 50 | 60 | 2 |
| JSBRT | 50 | 60 | 3 |
| JSBRT | 50 | 63 | 3 |
| JSBRT | 50 | 65 | 2 |
| JSBRT | 50 | 65 | 3 |
| JSBRT | 50 | 70 | 2 |
| JSBRT | 55 | 65 | 2 |
| JSBRT | 55 | 68 | 3 |
| JSBRT | 55 | 70 | 3 |
| JSBRT | 60 | 70 | 2 |
| JSBRT | 60 | 70 | 3 |
| JSBRT | 60 | 73 | 3 |
| JSBRT | 60 | 75 | 3 |
| JSBRT | 65 | 78 | 3 |
| JSBRT | 65 | 80 | 3 |
| JSBRT | 70 | 80 | 2 |
| JSBRT | 70 | 80 | 3 |
| JSBRT | 70 | 83 | 3 |
| JSBRT | 70 | 85 | 2 |
| JSBRT | 70 | 85 | 3 |
| JSBRT | 75 | 88 | 3 |
| JSBRT | 75 | 88 | 4 |
| JSBRT | 75 | 90 | 3 |
| JSBRT | 75 | 95 | 3 |
| JSBRT | 80 | 93 | 3 |
| JSBRT | 80 | 95 | 2 |
| JSBRT | 80 | 95 | 3 |
| JSBRT | 85 | 100 | 2 |
| JSBRT | 85 | 100 | 3 |
| JSBRT | 85 | 100 | 4 |
| JSBRT | 90 | 105 | 2 |
| JSBRT | 90 | 105 | 3 |
| JSBRT | 90 | 110 | 3 |
| JSBRT | 95 | 110 | 2 |
| JSBRT | 95 | 110 | 3 |
| JSBRT | 95 | 115 | 3 |
| JSBRT | 100 | 115 | 2 |
| JSBRT | 100 | 115 | 3 |
| JSBRT | 100 | 120 | 3 |
| JSBRT | 105 | 120 | 2 |
| JSBRT | 105 | 120 | 3 |
| JSBRT | 110 | 125 | 2 |
| JSBRT | 110 | 125 | 3 |
| JSBRT | 110 | 130 | 3 |
| JSBRT | 115 | 130 | 2 |
| JSBRT | 115 | 130 | 3 |
| JSBRT | 120 | 135 | 2 |
| JSBRT | 125 | 140 | 2 |
| JSBRT | 125 | 140 | 3 |
| JSBRT | 130 | 145 | 2 |
| JSBRT | 145 | 160 | 2 |
